半圆柱体P放在粗糙的水平面上，有一挡板MN与半圆柱不接触，在P和MN之间放有一个光滑均匀的小圆柱体Q，如图是这个装置的截面图，整个装置处于静止状态．若用外力缓慢地移动挡板MN，并保持挡板MN始终与两圆心的连线平行，在MN到达水平位置前，发现P始终保持静止，在此过程中，下列说法中正确的是（ ）
A．Q所受的合力逐渐增大
B．地面对P的弹力逐渐增大
C．P、Q间的弹力先减小后增大
D．MN对Q的弹力逐渐增大
设两圆心的连线与水平方向夹角为α．
A、缓慢地移动挡板MN的过程中，Q所受合力始终为零，保持不变．故A错误．

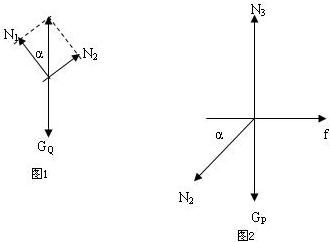

B、C、D以Q为研究对象，分析受力，如图1，根据平衡条件得，MN对Q的弹力N1=GQcosα，P对Q的弹力N2=GQsinα，GQ不变，α减小，则N1增大，N2减小．再以P为研究对象，分析受力如图，由平衡条件得，地面对P的弹力N3=GP+N2sinα，GP不变，N2减小，α减小，则地面对P的弹力N3减小．故BC错误，D正确．
故选D
